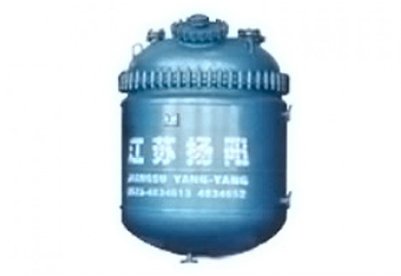

技術特性表
|
名稱 |
蒸餾罐 |
|||||
|
公稱容積(L) |
300 |
500 |
1000 |
1500 |
2000 |
3000 |
|
換熱面積(M2) |
1.75 |
2.64 |
4.54 |
5.34 |
7.02 |
8.61 |
|
允許工作壓力PN |
罐內PN≤0.25Mpa |
夾套PN≤0.58Mpa |
||||
|
允許工作溫度℃ |
0-200℃ |
夾套0-200℃ |
||||
|
玻璃層耐溫急變 |
熱沖擊120℃ |
冷沖擊110℃ |
||||
搪玻璃閉式貯罐
|
代號 |
公稱容積(L) |
||||||
|
300 |
500 |
1000 |
1500 |
2000 |
3000 |
||
|
DN |
800 |
900 |
1200 |
1300 |
1300 |
1600 |
|
|
DO |
560 |
630 |
840 |
910 |
910 |
1120 |
|
|
D1 |
900 |
1000 |
1300 |
1450 |
1450 |
1750 |
|
|
D2 |
1029 |
1152 |
1485 |
1679 |
1679 |
2029 |
|
|
D3 |
25 |
25 |
30 |
30 |
30 |
36 |
|
|
L |
-1280 |
-1500 |
-1800 |
-2020 |
-2360 |
-2455 |
|
|
H |
870 |
1075 |
1275 |
1475 |
1820 |
1820 |
|
|
H1 |
350 |
400 |
500 |
600 |
600 |
700 |
|
|
H2 |
390 |
415 |
510 |
535 |
530 |
615 |
|
|
H3 |
250 |
270 |
315 |
315 |
315 |
315 |
|
|
H4 |
240 |
270 |
250 |
330 |
330 |
330 |
|
|
H5 |
- |
- |
- |
- |
507 |
615 |
|
|
卡子規格 |
BM16 |
BM20 |
BM20 |
BM20 |
BM20 |
BM24 |
|
|
卡子數量 |
40 |
36 |
52 |
56 |
56 |
60 |
|
|
管口規格及用途 |
蒸餾孔a |
150 |
200 |
300 |
300 |
400 |
400 |
|
手孔b |
125 |
150 |
200 |
200 |
200 |
200 |
|
|
溫度計口 |
65 |
65 |
80 |
80 |
80 |
100 |
|
|
視鏡d,g |
80 |
100 |
100 |
100 |
100 |
125 |
|
|
備用口e,f |
80 |
80 |
80 |
80 |
80 |
100 |
|
|
放料口h |
80 |
80 |
100 |
100 |
100 |
125 |
|
|
出料口p |
- |
- |
- |
- |
50 |
65 |
|
|
進料口I,j,k |
25 |
32 |
32 |
40 |
40 |
50 |
|
|
放氣閥M |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
G3/8" |
|
|
設備總量 |
536 |
710 |
1295 |
1710 |
2125 |
2935 |
|
