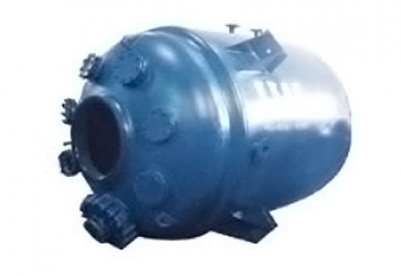

技術特性表
|
名稱 |
蒸餾罐 |
||
|
公稱容積(L) |
1500 |
2000 |
3000 |
|
換熱面積(M2) |
5.34 |
7.02 |
8.61 |
|
允許工作壓力PN |
罐內PN≤0.25Mpa 夾套PN≤0.58Mpa |
||
|
允許工作溫度℃ |
0-200℃ 夾套0-200℃ |
||
|
玻璃層耐溫急變 |
熱沖擊120℃ 冷沖擊110℃ |
||
搪玻璃閉式貯罐(表1)
|
代號 |
公稱容積(L) |
|||
|
1500 |
2000 |
3000 |
||
|
DN |
1300 |
1300 |
1600 |
|
|
DO |
910 |
910 |
1120 |
|
|
D1 |
1450 |
1450 |
1750 |
|
|
D2 |
1679 |
1679 |
2029 |
|
|
D3 |
30 |
30 |
36 |
|
|
L |
-2020 |
-2360 |
-2455 |
|
|
H |
1475 |
1820 |
1820 |
|
|
H1 |
600 |
600 |
700 |
|
|
H2 |
535 |
530 |
615 |
|
|
H3 |
315 |
315 |
315 |
|
|
H4 |
330 |
330 |
330 |
|
|
H5 |
- |
507 |
615 |
|
|
卡子規格 |
BM20 |
BM20 |
BM24 |
|
|
卡子數量 |
56 |
56 |
60 |
|
|
管口規格及用途 |
蒸餾孔a |
300 |
400 |
400 |
|
手孔b |
200 |
200 |
200 |
|
|
溫度計口 |
80 |
80 |
100 |
|
|
視鏡d,g |
100 |
100 |
125 |
|
|
備用口e,f |
80 |
80 |
100 |
|
|
放料口h |
100 |
100 |
125 |
|
|
出料口p |
- |
50 |
65 |
|
|
進料口I,j,k |
40 |
40 |
50 |
|
|
放氣閥M |
G3/8" |
G3/8" |
G3/8" |
|
|
設備總量 |
1710 |
2125 |
2935 |
|
搪玻璃閉式貯罐(表2)
| 代號 | 公稱容積(L) | ||||
| 5000 | 5000 | 6300 | 8000 | ||
| DN | 1600 | 1750 | 1750 | 2000 | |
| DO | 1120 | 1200 | 1200 | 1400 | |
| D1 | 1750 | 1900 | 1900 | 2200 | |
| D2 | 2029 | 2200 | 2200 | 2502 | |
| D3 | 36 | 36 | 36 | 36 | |
| D4 | ￠95 | ￠95 | ￠95 | ￠95 | |
| D5 | 80×6 | 80×6 | 80×6 | 95×8 | |
| D6 | 600 | 600 | 600 | 800 | |
| D7 | 450 | 450 | 450 | 500 | |
| D8 | 1300 | 1400 | 1400 | 1600 | |
| H | 3275 | 2940 | 3375 | 3280 | |
| H1 | 1160 | 1200 | 1220 | 1360 | |
| H2 | - | 420 | 900 | 690 | |
| H3 | 315 | 350 | 350 | 400 | |
| H4 | 515 | 550 | 550 | 510 | |
| H5 | 780 | 886 | 885 | 960 | |
| H6 | 1745 | 1656 | 1785 | 1860 | |
| h | 240 | 270 | 270 | 330 | |
| L | 4800 | 4470 | 5060 | 5270 | |
| 總量 | 4434 | 4545 | 5200 | 6455 | |
