技術(shù)特性表
|
允許工作壓力PN |
PN≤0.25 |
|
允許工作溫度℃ |
0-200℃ |

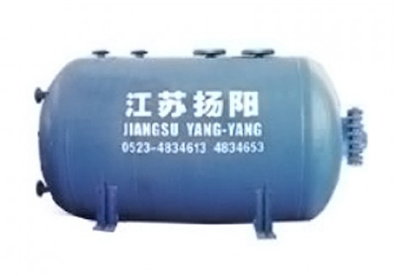

搪玻璃閉式貯罐
|
公稱容積 |
尺寸 |
||||||||||
|
lo |
l1 |
l2 |
l3 |
l4 |
H1 |
H |
A1 |
K1 |
A2 |
B |
|
|
3000 |
2710 |
900 |
310 |
403 |
250 |
1760 |
1000 |
1350 |
1120 |
200 |
100 |
|
4000 |
3310 |
1500 |
310 |
403 |
250 |
1760 |
1000 |
1350 |
1120 |
200 |
100 |
|
5000 |
3265 |
1240 |
480 |
440 |
250 |
2080 |
1200 |
1430 |
1180 |
350 |
150 |
|
6300 |
4060 |
1740 |
580 |
440 |
250 |
1980 |
1200 |
1430 |
1180 |
350 |
150 |
|
10000 |
4080 |
1820 |
415 |
550 |
160 |
2340 |
1300 |
1780 |
1490 |
250 |
150 |
|
12000 |
4900 |
1920 |
415 |
550 |
160 |
2340 |
1300 |
1780 |
1490 |
350 |
150 |
|
15000 |
5340 |
2000 |
380 |
550 |
250 |
2740 |
1500 |
1890 |
1750 |
350 |
150 |
|
16000 |
5420 |
2100 |
380 |
580 |
160 |
2540 |
1300 |
1680 |
1540 |
350 |
150 |
|
20000 |
6260 |
2500 |
580 |
600 |
160 |
2940 |
1600 |
2080 |
1940 |
350 |
150 |
